Ultrasonic Camera

Waterproof ultrasonic /

Acoustic camera for outdoor installation

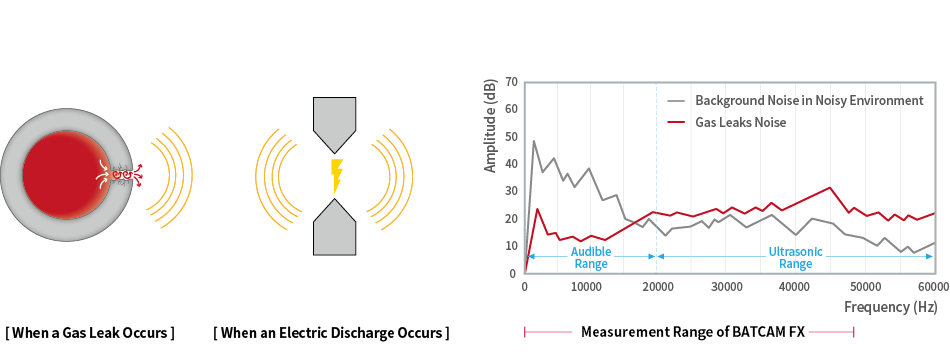

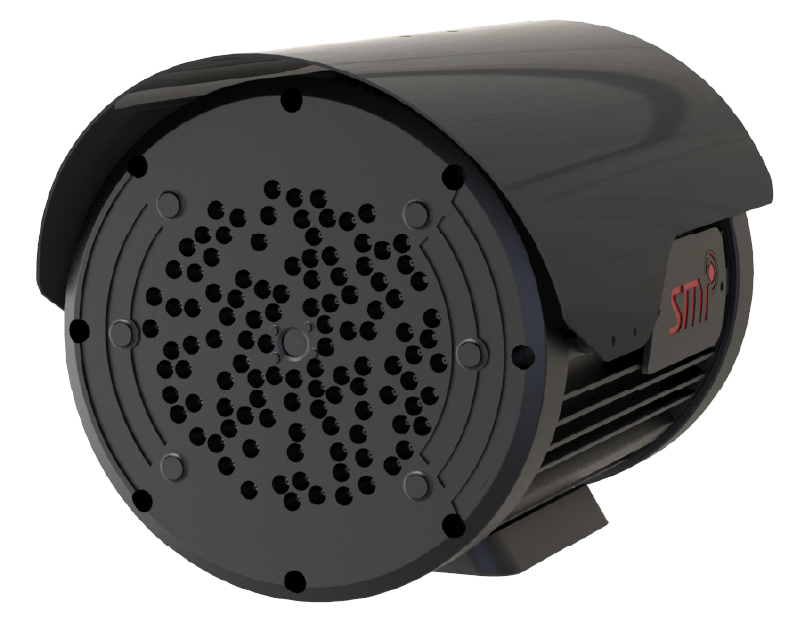

BATCAM FX is the world’s lightest and smallest ultrasonic / sound camera. It can be used for various objectives, because it can measure not only signal in audible range but also in ultrasonic range. It has 112 microphones for high measurement sensitivity and can detect ultrasonic signal at 100 kHz. BATCAM2.0 can clearly measure not only car BSR(Buzz, Squeak, Rattle), but also the minute air · gas leak, and the electric arc. It will continually increase productivity and comfort.

mobile background

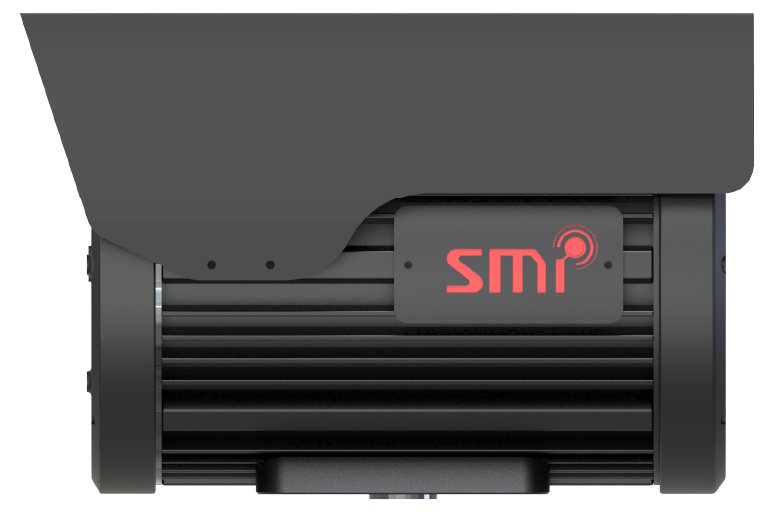

Hardware

  • 112Ch MEMS microphone
  • IP (Ingress Protection) 65
  • PoE+ (Ethernet connection)
  • DC 24V 2A (48W)
  • 150 x 150 x 75.5mm (1.2kg)

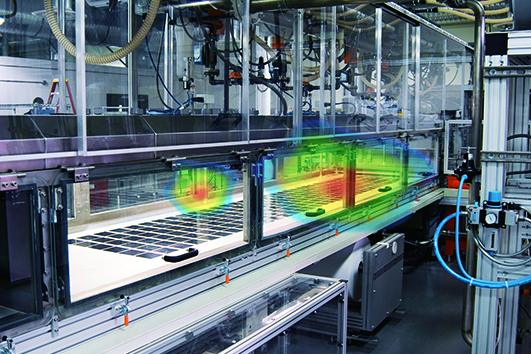

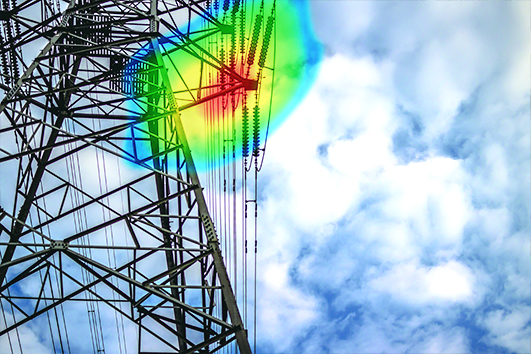

Real-time air and gas leakage detector



Acoustic and video measurements

using ultrasonic microphones and

optical camera

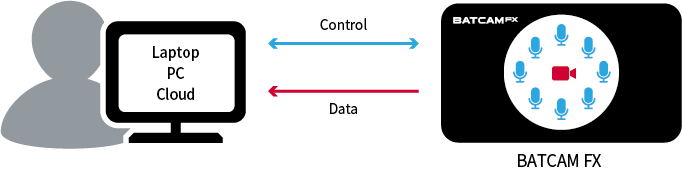

Connect POE (Power of Ethernet) PC and

Ethernet cableto check

the measurement results


Software

  • Real-time Acoustic Camera Monitoring
  • Sound pressure level based event triggering and storing
  • Equipped with acoustic data measurement and storage and acoustic signal analysis functions
  • Export of various types of data
  • Report output of measurement and analysis results
  • Provide API for secondary development, provide dashboard (FX Viewer)

API support

  • WebSock and REST API-based user API support

  • Real-time measurement result monitor AP

  • Equipment status monitoring, status monitoring, settings, settings

  • C#, py-on example code support code support

 Specifications

  • WebSock and REST API-based user API support

  • Real-time measurement result monitor AP

  • Equipment status monitoring, status monitoring, settings, settings

  • C#, python example code support code support


Specifications
Sensor(Microphone)112 Ch Digital MEMS
Effective Frequency Range
2 kHz ~ 100 kHz
Microphone Sensitivity
66 dB(A)
Signal-To-Noise ratio
-41 dBFS
Camera Frame Speed
25 FPS
Camera Resolution
1600 x 1200
Camera View Angle
62.2° horizontal, 48.8° vertical
Measurement Distance
0.3 m ~ 100 m
Detection Distance
50 m
Dimensions (LxWxD)
150 x 150 x 75.5 mm
Weight
1.2 kg
Communication port
RJ45
Power supply
PoE 100-240 VAC, max 25 W /
DC24V 2A (48 W)
Product status LED
Front LED On (Green)/ Off (Red)
Power consumption
Max. 25 W
Product fixed method
Provides rear VESA 75 Hole



System Integration


Dedicated software
Provides FX Viewer

Software Minimum Requirement Specifications

OS: Win10 64bit, CPU: INTEL 9th Gen i7,
RAM: 8GB or more
Number of devices that can be stored simultaneously in softwareMaximum 6th
API
Provide REST API
Communication method

RTSP streaming(Video), Websocket communication(Data) and Export to mp4 and json

Event Triggering/Alarming
negative pressure level-based event trigger
Save Event
Trigger-based measurement data storage (mp4,).json)




General
Ingress Protection
IP 65
Operating Temperatures
-20 °C to 50 °C ( -4℉ to 122℉)


Certifications
