✔ (GIS : Geographic Information System)
GIS, cloud-based AI analysis function added to
From electrical discharges and Gas leaks to various noise sources!
Now meet BATCAM 2S with improved performance such as sampling rate, display, UI and more.
The newly introduced BATCAM 2S is equipped with GIS and cloud-based AI analysis capabilities to increase user work efficiency. The measurement sensitivity is increased by detecting gas leaks using 112 microphones, measure the following signals in the discharge, abnormal noise, and ultrasonic bands from 2 kHz to 100 kHz BSR (Buzz, Squak, Rattle) noise it also performs well in measuring high frequency noise.
Explosion-Proof Ultrasonic Acoustic Camera

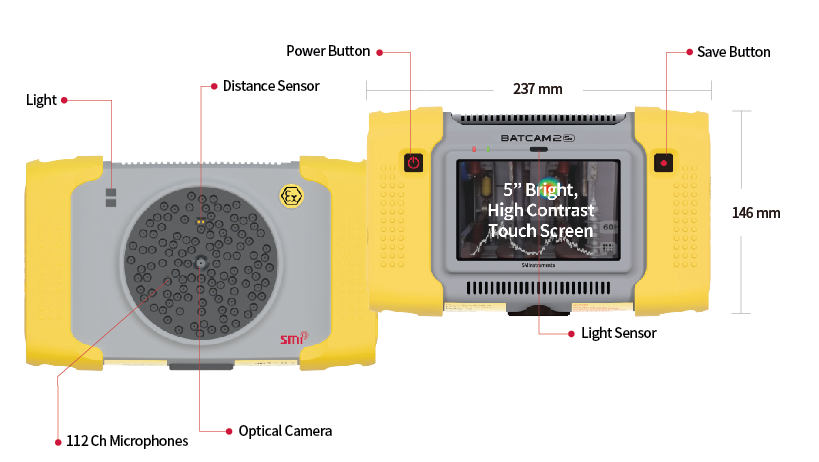

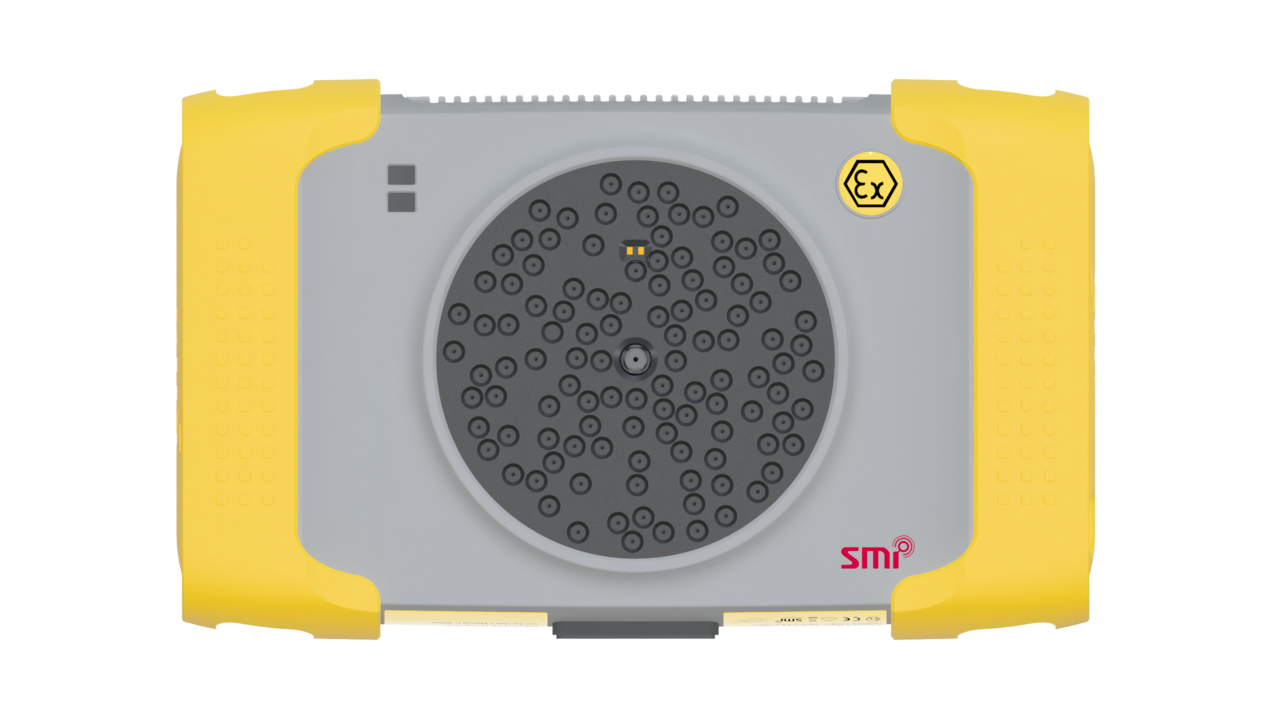

The BATCAM 2Sx is equipped with 112 digital MEMS microphones and a high-speed FPGA-based processor. It is a portable industrial ultrasonic and acoustic camera designed for use in hazardous areas within the chemical and energy industries.
The BATCAM 2Sx enables users to detect and identify the location and type of electrical partial discharges or leaks even without direct contact or power shutdown.

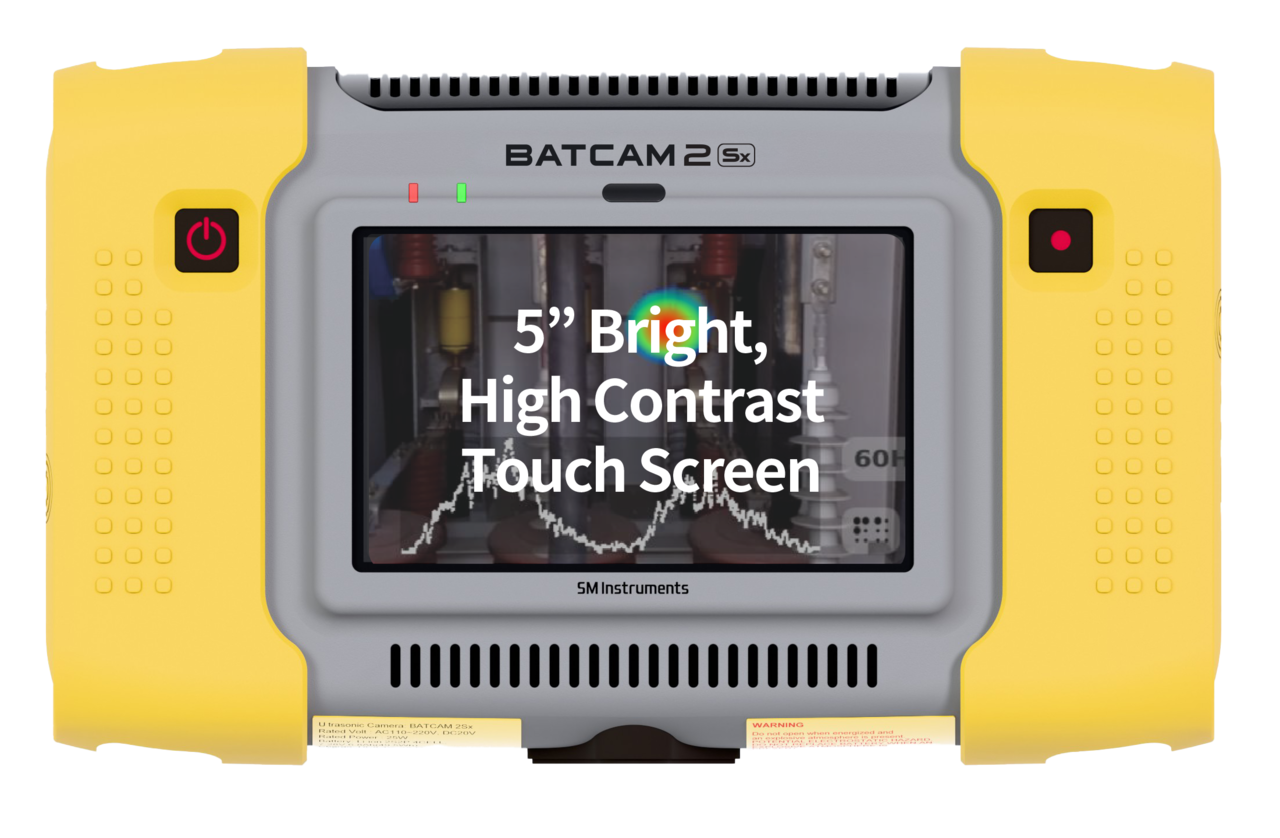

Detected ultrasonic signals are displayed on a 5-inch LCD touchscreen, helping users quickly identify the source of the problem.The BATCAM 2Sx provides external connection terminals for file transfer and firmware updates, and allows measurement images to be uploaded to the cloud via PC or mobile APP. With ATEX certification for use in explosive atmospheres (II 3G Ex ic IIC T5 Gc), the BATCAM 2Sx ensures safe operation even in potentially explosive environments by complying with strict safety standards.
Small and lightweight, making it easy to carry
GPS location can be saved (APP connection)
Cloud-based AI analysis available
ATEX Certification (II 3G Ex ic IIC T5 Gc)
| Specifications | |||
|---|---|---|---|
| Sensor (Microphone) | 112Ch Digital MEMS | Data Format | JPG, MP4 |
| Effective Frequency Range | 2 kHz ~ 100kHz | Storage / Video Length | 21GB (Save 8,400 Pictures, Video 20 hours) / 30 min |
| Acoustic Measurement | Detection threshold 2 kHz : 2.34 dB SPL 20 kHz : 2.22 dB SPL 40 kHz : 1.90 dB SPL 55 kHz : 1.22 dB SPL 70 kHz : 1.84 dB SPL 100 kHz : 20.10 dB SPL | Data transfer | USB-C, Bluetooth 5.0 Support |
| Test Distance | 0.5 ~ 200m | Operating time (charging time) | Up to 5 hours (Up to 4 hours) |
| Camera pixel / FOV | 8MP / Horizontal 63º, Vertical 40º | Product Size / Weight | 237 × 146 × 56 (mm) / 1.1 kg |
| Image Resolution / Frame Rate | 1024 x 608 / 25 FPS | Certifications |     |
| Digital Zoom / Auxiliary lights | x3 ZOOM / LED x 2 | Supported Language | Chinese (Traditional, Simplified), Croatian, Dutch, English, French, German, Japanese, Korean, Portuguese, Russian, Spanish, Thai, Turkish |
| Display Resolution | 5" Color LCD (800 x 480) | APP | IOS, Android |
| Brightness / Touch Screen | 1000 nit / Capacitive Touchscreen | Warranty extension program | Warranty 2 years |
| Certifications | ||
|---|---|---|
 |  |  |
