BSR Noise Detection
NVH Noise, Power Train Noise Detection
Noise Leakage Detection
Innovative, portable design
The acoustic camera SeeSV-S205W is designed and designed to be easily carried by users for convenient measurement.
High-sensitivity digital MEMS microphone
SeeSV-S205W instantly detects even small noises through a high-sensitivity microphone.
Excellent performance even in normal noise. BSR (noise and joint) noise sources can be detected
High resolution optical camera
High-resolution optical camera capable of capturing 25 images per second
FPGA Based real-time measurement and analysis
What is an FPGA? An FPGA (field program
mable gate array) is a semiconductor device that includes designable logic elements and programmable internal circuitry. Designable logic elements can be programmed to replicate the functions of basic logic gates such as AND, OR, XOR, NOT, and more complex decoders or combinations of computational functions.
Most FPGAs contain a simple flip-flop or a memory element with a more complete block of memory in a programmable logic element
(also known as an FPGA logical block). -Wikipedia.
SeeSV-S205W is a real-time handheld sound
camera which implements FPGA-based high speed beamforming technology.
BSR Noise Detection
NVH Noise, Power Train Noise Detection
Noise Leakage Detection

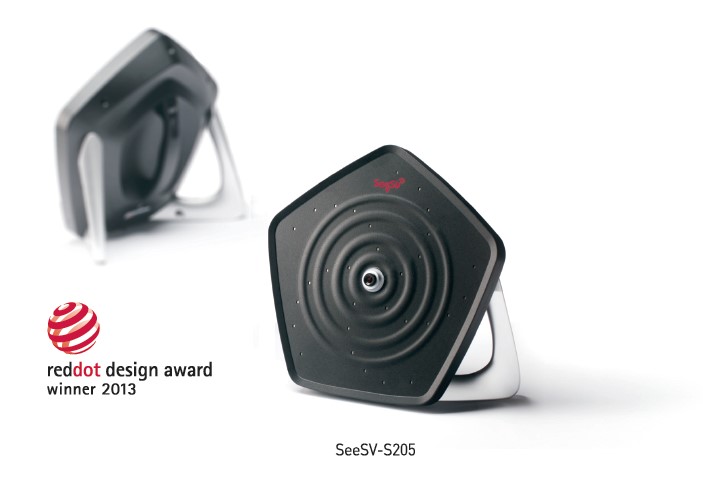

Now See your Sound and Vibration!
SeeSV-S205 is a real-time sound camera which implements FPGA-based high-speed beamforming technology. It was developed for highly transient noise source detection, and also performs excellently on stationary noise sources. It is capable of capturing 25 images per second. Highly sensitive microphones detect small annoyance sounds immediately. Its major application is for Buzz, Squeak, and Rattle [BSR] noise source detection as well as Noise, Vibration, and Harshness [NVH] source visualization. The unique design of SeeSV-S205 makes accurately measuring sound easy. Now you can carry your sound camera anywhere to perform measurements. A Sound Camera has traditionally been heavy and expensive instruments. However, the SeeSV-S205 will open new doors and your ears. It has an ergonomic design, weighs only
2 kg, and has a highly competitive price. Start your sound measurements with our new camera today.
Hardware
• Innovative Unique Design
• High Sensitivity Digital MEMS Microphone
• High Resolution Optical Camera
• FPGA-based Real-Time Analysis
• Light Weight and Highly Portable, 2 kg
• No Control Box. Direct Connection with Ethernet Cable
Software
• Real-time Sound Imaging
• High Speed Image Update, 25 FPS
• Impulsive Noise Detection
• Optimized for Highly Transient Noise
• Auto Image Ranging Function
• AVI & WAV Export and Replay
• Real-Time Frequency Adjustment
• Real-Time Distance Adjustment
• Linear/Exponential Image Averaging
• Effective Post Processing
Portable, Fast and Accurate!
SeeSV-S205 is based on the latest FPGA technology, which makes it possible to integrate signal conditioning, data acquisition, filtering, and beamforming processing into a single chip. Our FPGA is fast; it generates 25 sound images per second with
accurate resolution. Our single FPGA does not need high electrical power and is driven by Power of Ethernet [POE).
Weighing a mere 2 kg, it is easily transportable and usable. MEMS microphone technology is improving every day and is achieving more than 56 dB signal-to-noise ratio. SeeSV-S205 uses highly accurate digital MEMS microphones for portable, fast, and accurate measurements

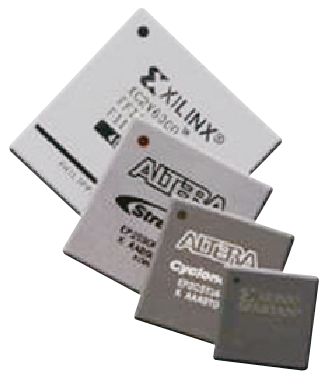

what is FPGA?
A field-programmable gate array [FPGA] is an integrated circuit designed to be configured by a customer or a designer after manufacturing-hence "field-programmable" The FPGA configuration is generally specified using a hardware description language [HDL],similar to that used for an application-specific intergrated circuit [ASIC] (www.wikipedia.org)

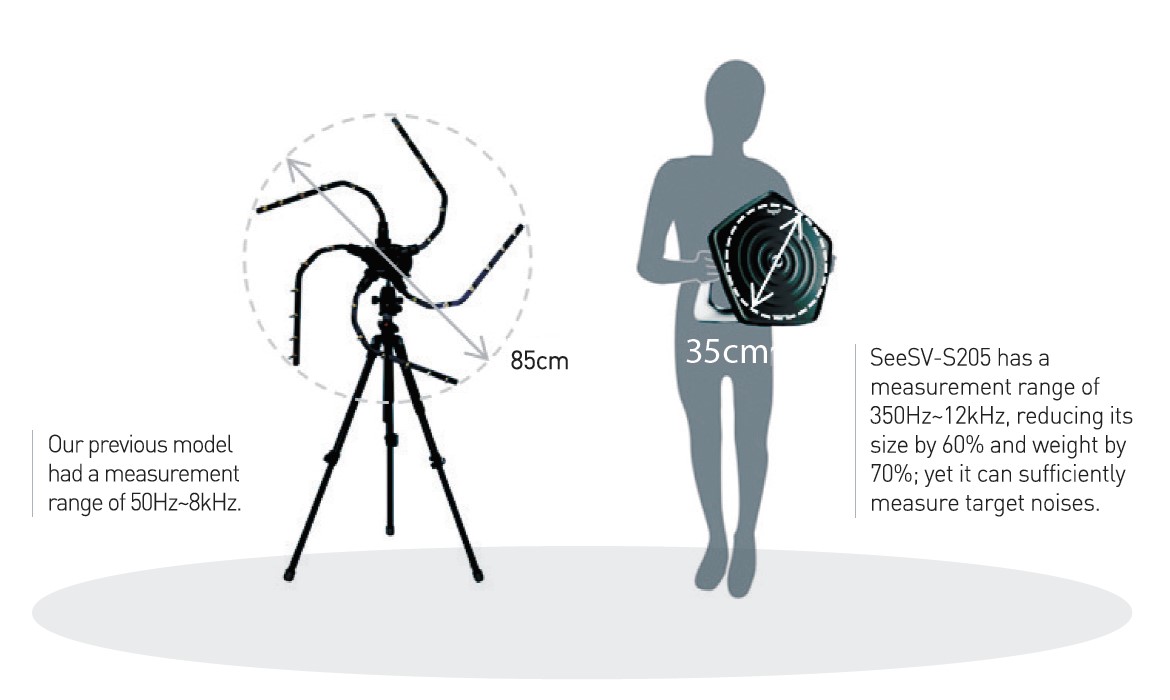

Improved performance

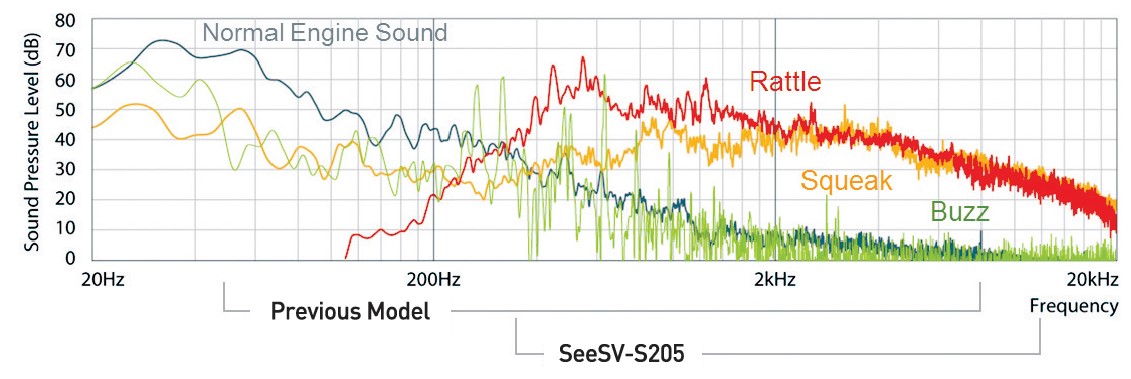

In order to measure low frequency noises [50Hz~] with long wavelengths, our previous model had large spaces between microphones. Based on the idea that noises from industrial products such as BRS have relatively higher frequencies, we moved the measurement range [350Hz~], drastically reducing the size enough for mobile use.

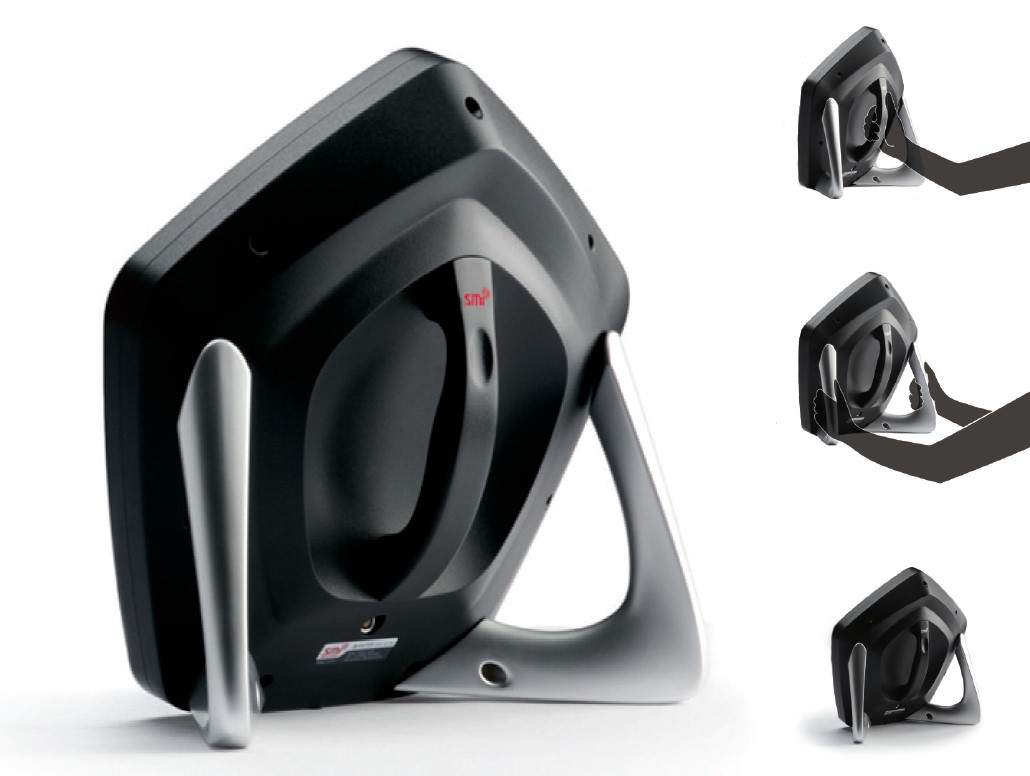

Excellent usability
Its central handle at the back enables stable on-hand grip, allowing the user to control the noise source or computer with the other hand.
Two side handles enable the user to comfortably hold the camera in many different ways.
Two side handles also provide steady stand.

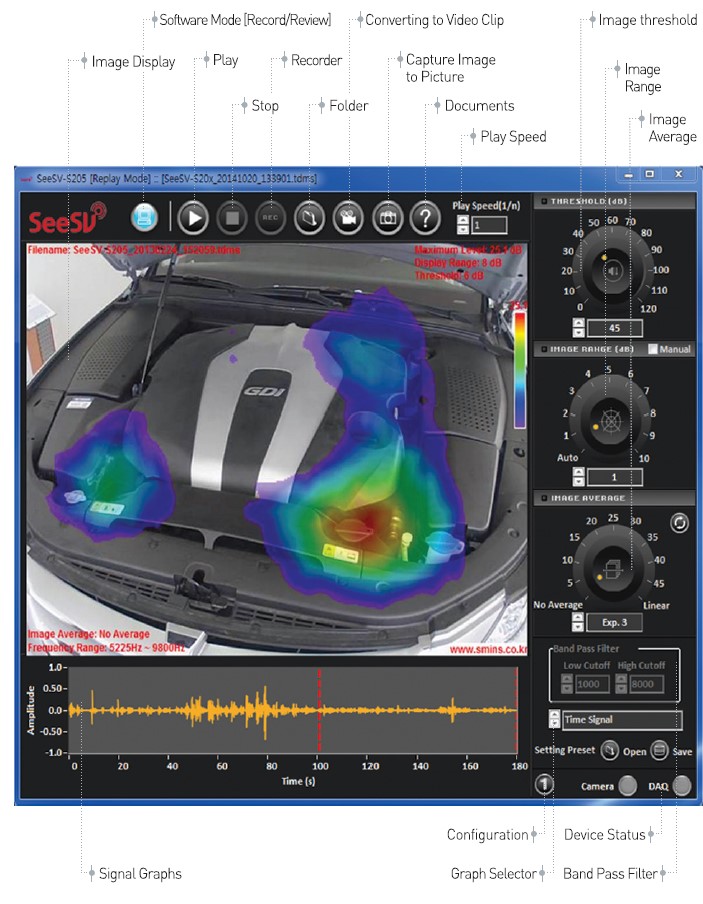

Easy Operation software
SeeSV-S205 includes simple, easy, and high performance software. It automatically starts their operation as soon as the user runs the software. You can record sound videos with our intuitive graphical user interface. 'Record' and 'Stop' buttons control video recordings and our ‘Replay’ button replays the recorded video at various speeds of your choosing. It is almost as simple as using an mp3 player. There are three knobs on the right side: 'Threshold', 'Image Range' and 'Image Average.' These make controlling the quality of your image simple.
Convenient Software
SeeSV Real-Time Software has enhanced portability.
It provides a touch-based user experience for combining with a tablet computer.
Specifications
| Microphone Array | |
|---|---|
| Microphone Type | Digital MEMS Microphone |
| Number of Microphone | 30 |
| Microphone Sensitivity | -26 dBFS, at 94 dB SPL |
| Array Diameter | 38 cm |
| Frequency Range | Min. 350 Hz |
| Max. 12 kHz | |
| Recommened 2 kHz~10 kHz [60 deg½ Bandwidth] | |
| Min. Measurement Distance | 0.2 m ~ 5 m [Recommended] |
| Weight | 2.0 kg |
| Data Acquistion and Processing | |
|---|---|
| Sampling Rate | 25.6 kS/s |
| Imaging Algorithm | Beamforming |
| Image Ranging | Automatic/Manual |
| Environmental Condition | |
|---|---|
| Operating Temp. | -20℃ ~50℃ |
| Humidity | 10~85 % |
| Wi-Fi Module |
|---|
| IEEE 802.11 a/n Wi-Fi |
| 5 GHz |
| Speed:Max. 150Mbps |
| Reconnect in less than 0.05se |
| PCB Antenna |
| Battery Pack | |
|---|---|
| Battery Type | 4-cell, Lithium-lon Battery |
| Charging Voltage | DC 24V |
| Charging Time | 3 hours |
| Battery Life | 2.5 hours |
Array Beam pattern
1m, 2kHz Resolution | |
| 3dB width | 10.4 deg |
| Max. Side Lobe | -17.1 dB |
1m, 5kHz Resolution | |
| 3dB width | ±6.23 deg |
| Max. Side Lobe | -11.40 dB |
Accessories
SeeSV-S205W accessories can help to detect BSR sources conveniently under various environment conditions
Array Beam pattern
| 1m, 2 kHz Resolution | |
|---|---|
| 3dB width | 10.4 deg |
| Max. Side Lobe | -17.1 dB |
| 1m, 5 kHz Resolution | |
|---|---|
| 3dB width | ±6.23 deg |
| Max. Side Lobe | -11.40 dB |
Accessories
Connector : LEMO to Cigar Jack
Cable Length : 1.8M
Power : DC12V 5A
Dimensions : 56 x 38 x 20cm (+15cm)
Weight : 3.5 kg (7.716lbs)
Travel Bag Volume : 40L
Detachable Rucksack Volume : 20L
Skate Wheels replaceable
Maximun Height with Extended Center Column : 179 cm
Maximun Height : 150cm
Minimum Height : Closed Length : 49.7cm
Weight : 2 kg
Maximum Load Capacity : 5 kg
Plate Supplied With The Head : 200PL-14
